Backlighting

Overview:

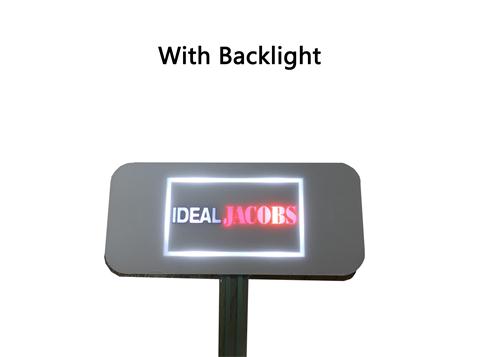

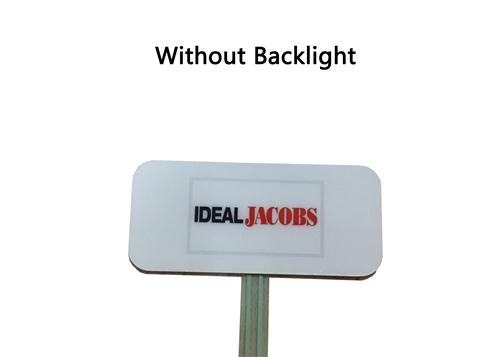

Ideal Jacobs is dedicated to providing new product solutions for our customers. One such example is the "backlighting label” .



The ideal of this product is “ lighting up your brand”. With our backlighting label we can make the image you request shine evenly in a fixed area. We can also customize the backlighting Label to your specific needs.


Reference Data:



Electrical-Optical Characteristics

(Unless specified, the ambient tempreture Ta=25° C

 Item

Symbol

min.

typ.

max.

Unit

 Forward Voltage

Vf

2.8

3.0

3.2

V

 Reverse Current

Ir

/

/

20

μA

 Luminance

Lv

300

/

/

cd/m²

 Uniformity

Avg

70

/

/

·/·

 Chromaticity Coordinates

X

0.240

　

0.300

　

Y

0.240

　

0.300

　

 Operating Temp

Topr

- 20 ~ +85

°C

 Storage Temp

Tstg

- 20 ~ +85

°C

Absolute Maximum Ratings (Single LED)

 Item

Symbol

Rating

Unit

Conditions

 Absolute maximum forward current

Ifm

50

mA

　

 Peak forward current

Ifp

L20

mA

1 msec                            1 msec Plus 10% Duty Cycle

 Reverse Voltage

Vr

5

V

　

 Power dissipation

Pd

160

mW

　

 Min Life

Hour

50000

h

A˂10mA T=25°C
